MillWheel: Fault-Tolerant Stream Processing at Internet Scale

A framework for building streaming systems with fault tolerance, persistent state and scalability.

Background

Other streaming systems do not provide the combination of fault tolerance, versatility and scalability.
A monotonically increasing low watermark, which indicates all data up to a given timestamp has been received, is useful to distinguish whether there is no data or data is delayed.

MillWheel is a graph of user-define transformations on input data that produces output data.
Inputs/outputs are represented by (key, value, timestamp) triples.
User code can access a per-key, per-computation persistent state for per-key aggregation.
Delivery Guarantee: all internal updates within the MillWheel framework resulting from record processing are atomically checkpointed per-key and records are delivered exactly-once.

A computation subscribes to zero or more input streams and publishes one or more output streams.
Persistent states are per-key opaque byte strings stored in Bigtable/Spanner.
Consumer specifies per-stream key extraction functions.
Computation code(containing application logic) is invoked upon receipt of input data. Processing is serialized per-key but can be parallelized over distinct keys.
Low watermark of a computation A is defined as min(oldest work of A, low watermark of C: C outputs to A). Low watermark values are seeded by injectors that send data into MillWheel from external systems.

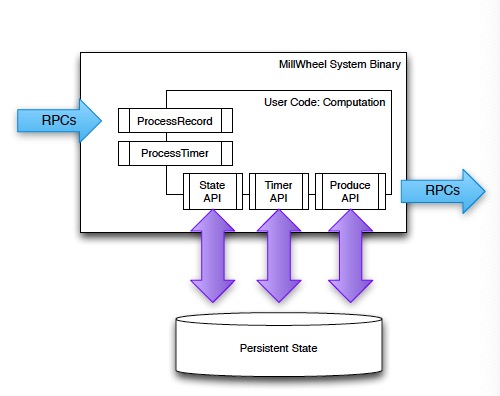

system

System assigns unique IDs to all records at production time. Upon receipt of an input record, MillWheel checks the record against deduplication data(bloom filter + backing store).
For strong productions, MillWheel checkpoints produced records before delivery in the same atomic write as state modification. When a process restarts, the checkpoints are scanned into memory and replayed.
For weak productions, MillWheel broadcasts downstream deliveries optimistically prior to persisting state. MillWheel selectively checkpoints a small percentage of straggler productions to prevent them from occupying undue resources in the sender.

weak production

To avoid inconsistencies in persistent state, all per-key updates are wrapped in a single atomic operation.
To address zombie writers and stale writes in network, MillWheel guarantees that for a given key, only a single worker can write to that key at a particular point in time. It is implemented by attaching a sequencer token to each write and let backing store check for validity.
Single-writer guarantee is critical to state consistency and low watermark correctness.

A replicated master divides each computation into a set of owned lexicographical key intervals and assigns intervals to a set of machines. It can move/split/merge intervals.
Each interval is assigned a unique sequencer and is invalidated whenever the interval is changed(for single-writer guarantee).
Low watermarks are tracked by a central authority. Workers compute low watermark updates and report to the central authority, so the central authority's low watermark values are always as conservative as workers'.
